Technical information
INFORMATION

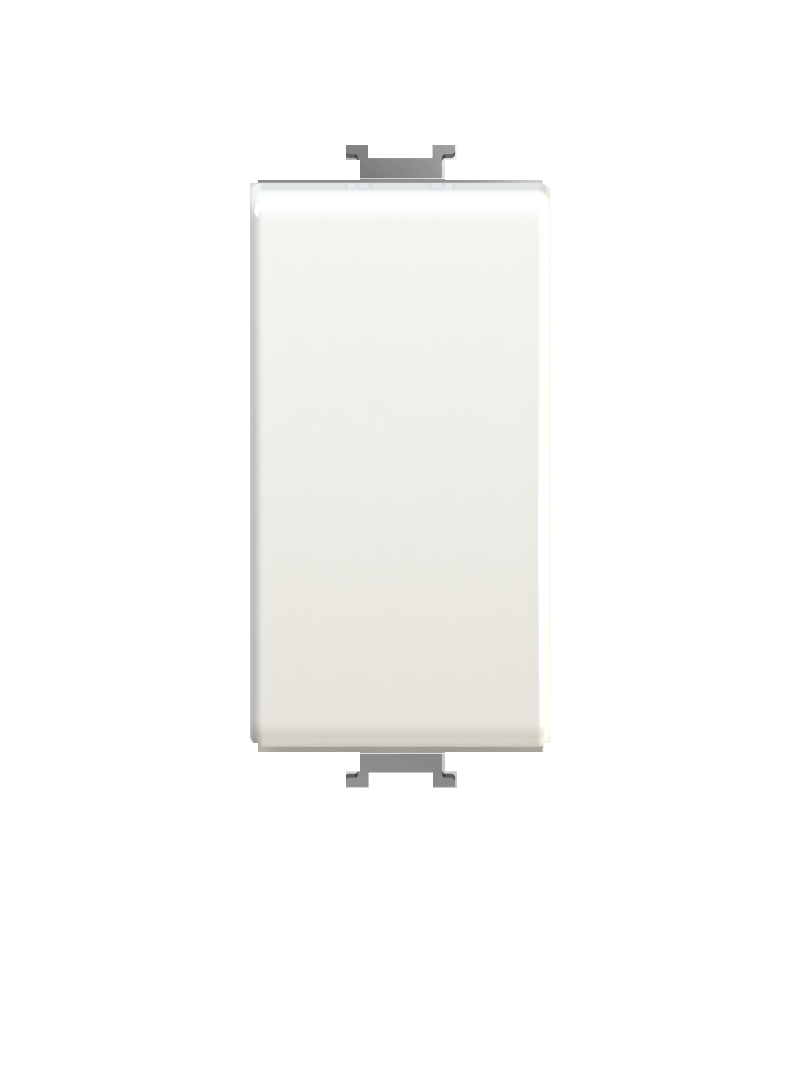

Multifunction switch 1 module – Switch, changeover switch, intermediate switch and push-button (NO/NC) 1P 16 A 250 V AC
Weight: 0.0387 kg
Packaging dimensions : 4.66 x 4.56 x 3.99 cm
Power supply: 10/16 A 250 V AC
Colour: White
Pcs per box: 10
Pcs per package: 200.0
Data Sheet
TECHNICAL FEATURES_UNIKO UNIKO_SPECIFICATION ITEMS_EN
Instructions
uniko-instructions
Declarations and certifications
Direttiva RAEE/WEEE User information Esperto Elettrotecnico

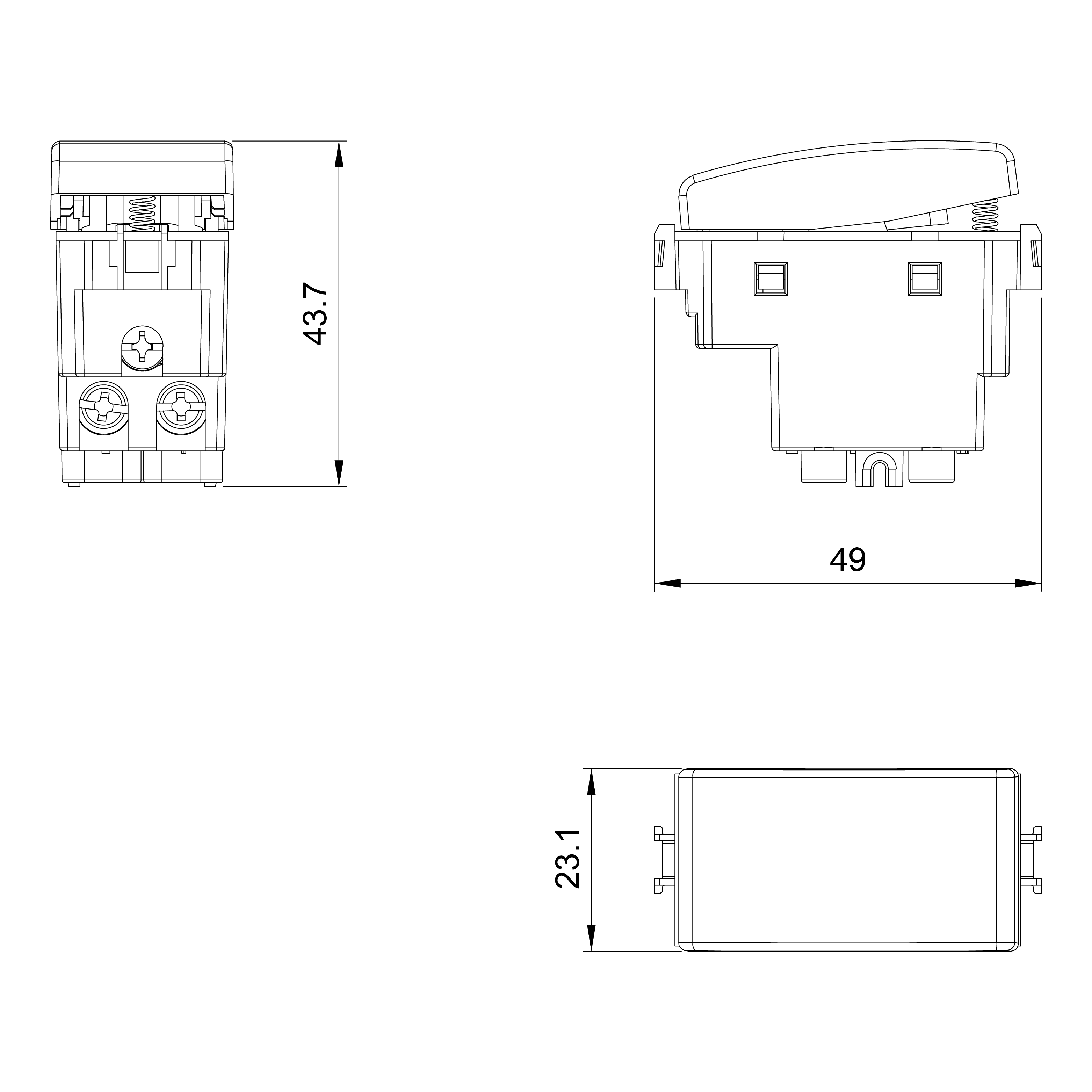

3D FILES AND PRODUCT SIZES
4BOX-UNIKO-MATIX.STEP 4BOX-UNIKO-MATIX.png
Technical features
From a push-button to a rocker switch
in just one simple step
An innovative mechanism for engaging and disengaging a spring inside the control unit allows the user to decide whether to use Uniko as a rocker control or a push-button, using only a standard Phillips or flat-blade screwdriver. The entire process is easy, fast, and safe!
Choose
Decide whether to use Uniko as a one-way switch, two-way switch, intermediate switch or a NO/NC push-button*.
If you change your mind, Uniko is easy to reconfigure.
*In electrical systems, there are two types of button:
• Normally open (NO): as soon as it is pressed, it closes the circuit.
• Normally closed (NC): as soon as it is pressed, it opens the circuit.
Change
Use a screwdriver to rotate the lever upwards to use Uniko as a push-button. Rotate the lever downwards to use Uniko as a rocker switch.
