Technical information
INFORMATION

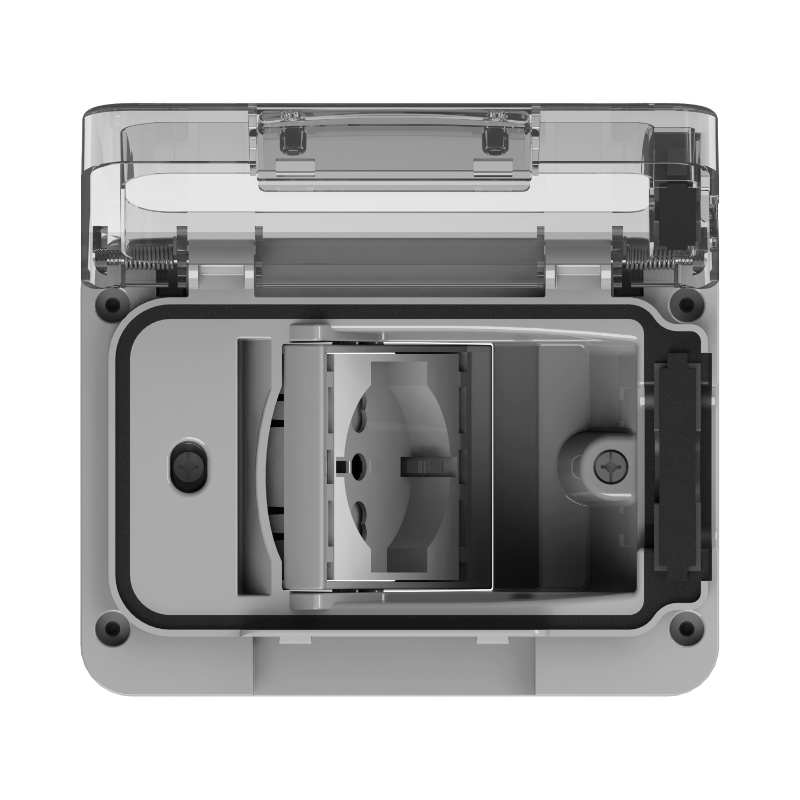

Outdoor Container IP55 for flush-mounted boxes with tilting socket allowing insertion of most common plugs, including Schuko plugs, with 90° cable exit.
Weight: 0.0049 kg
Dimensions: 2.23 x 4.8 x 2.04 cm
Power supply: 10/16 A 250 V AC 50-60 Hz
Colour: Ral 7035
Pcs per box: 1
Pcs per package: 20
Data Sheet
TECHNICAL FEATURES_WIDE WIDE_SPECIFICATION ITEMS_EN
Technical documentation
TECHNICAL FEATURES_SCATOLA_WIDE-V1 TECHNICAL FEATURES_ABBRACCIA_PALO istruzioni_wide istruzioni_abbraccia-palo
Declarations and certifications
dichiarazione_ce_wide dichiarazione_ce_scatola-wide dichiarazione-conformita_wide direttiva_raee_wide esperto_elettrotecnico_wide voci_capitolato_wide

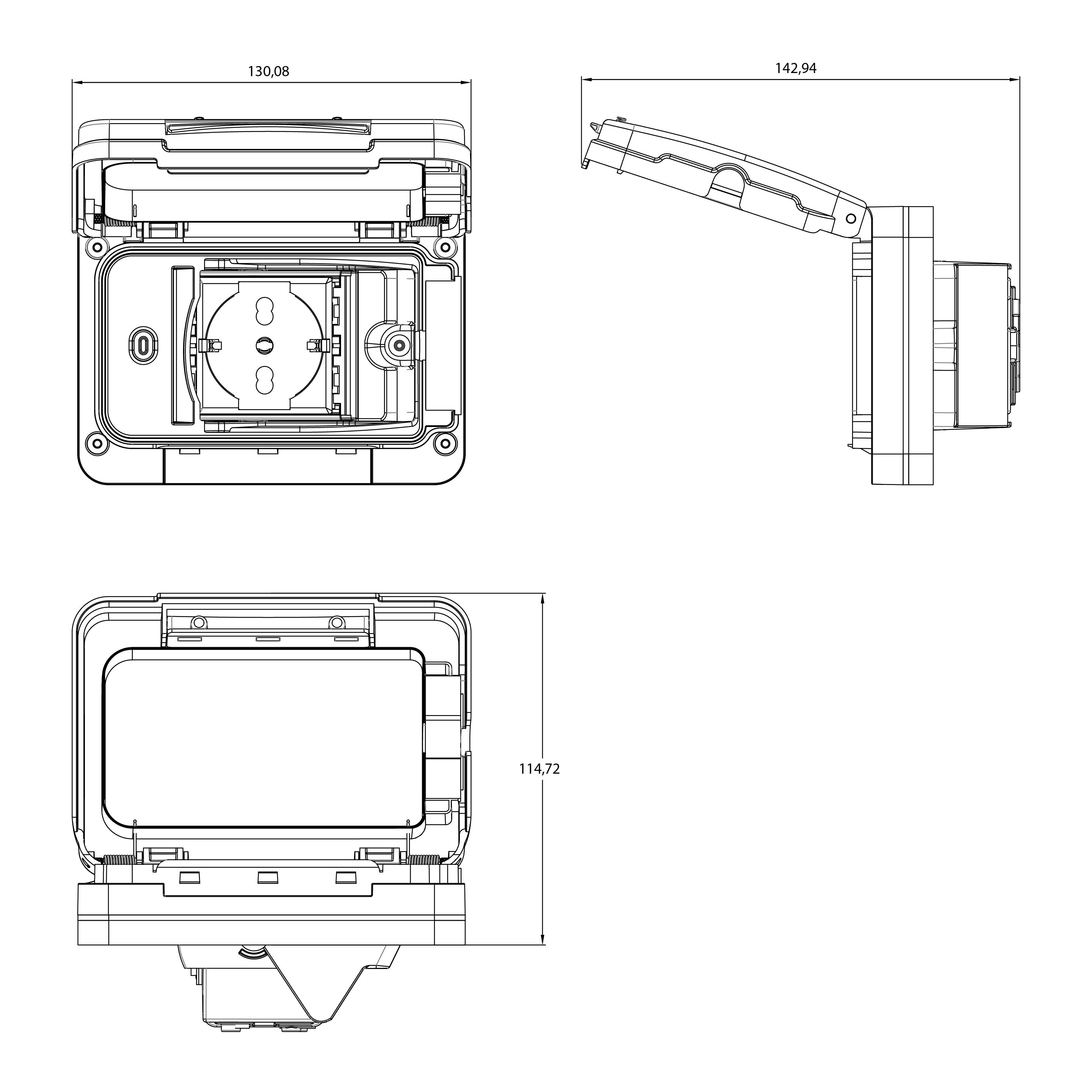

DESIGNS
4B-WIDE-PRESA.STEP 4BOX-WIDE-PRESA.png
Technical features:
Versatile and safe
The tilting socket allows the insertion of the most common plugs, including Schuko plugs with a 90° cable outlet.
The pressure exerted when inserting the plug is sufficient to activate the movement. Wide guarantees protection of the system and maintains, even with the plug inserted, the IP55 protection rating when installed in a three-module flush-mounted box, or IP66 when installed with its wall box. Wide is suitable for all types of plugs available on the market.
Suitable for protecting systems in any environment
Suitable for domestic environments, such as outside the home, in swimming pools, and in garages, excellent in work environments, from professional kitchens to technical rooms. Whatever its use, Wide protects your system in total safety.
