Technical information
INFORMATION
Electrical socket 2 modules for panel with screw fitting – 4 mm holes – 1 Schuko or 2 two-pin/bipasso sockets – 2P+E 16 A 250 V AC – 2x2P+E 10/16 A 250 V AC
Weight: 0.0464 kg
Dimensions: 4 x 3 x 4 cm
Power supply: 10/16 A 250 V AC 50-60 Hz
Colour: Anthracite
Pcs per box: 10
Pcs per package: 200
Data Sheet
TECHNICAL FEATURES_SIDE TECHNICAL FEATURES_SIDE_PANNELLO
DOCUMENTATION
SIDE_SPECIFICATION ITEMS_EN
Declarations and certifications
Direttiva RAEE/WEEE User information Esperto Elettrotecnico Dichiarazione conformita Side Pannello Dichiarazione conformità Side Dichiarazione CE Side Pannello Dichiarazione CE Side
DESIGNS

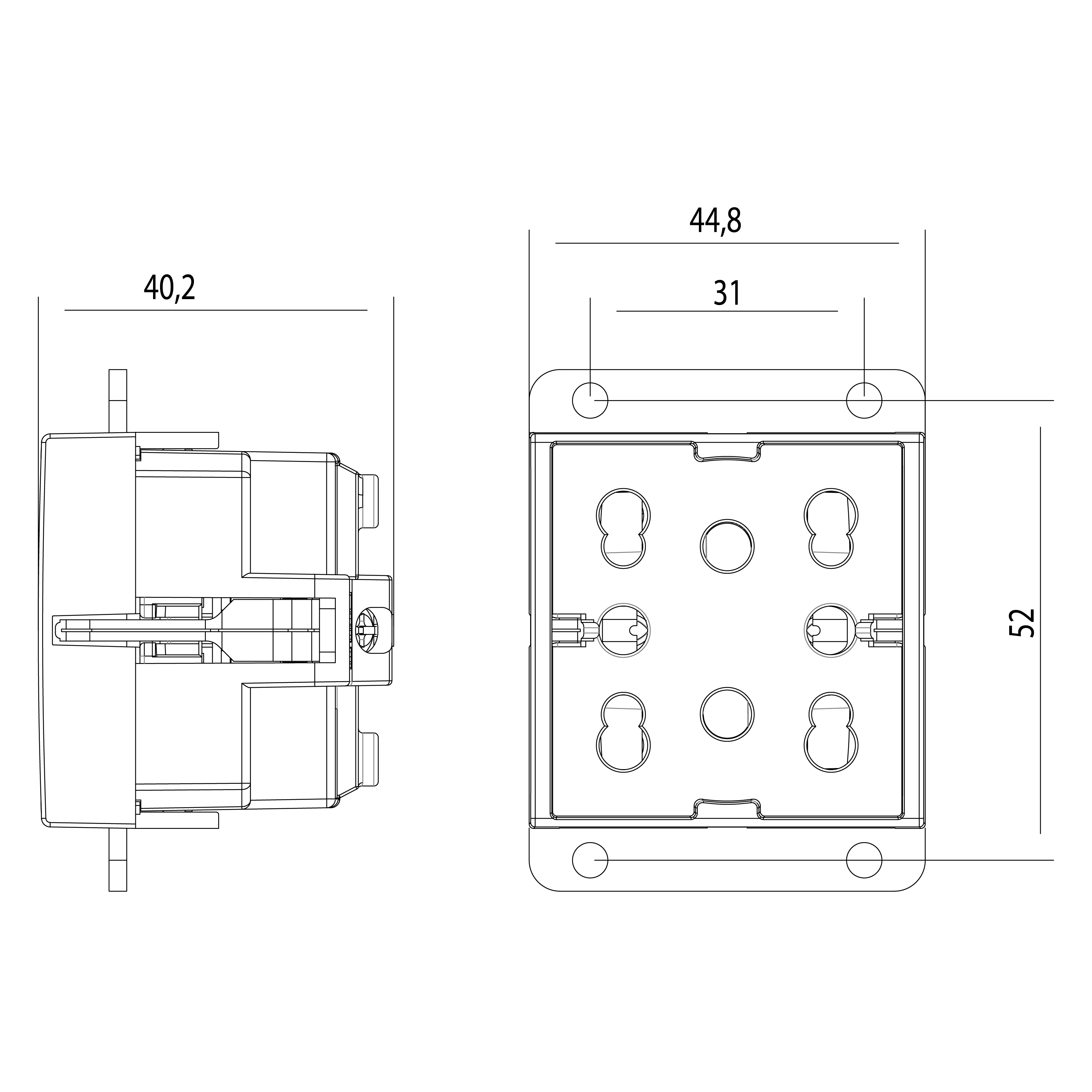

4BOX-H21-PANNELLO.STEP 4BOX-SIDE-PANNELLO.png
Technical features
Schuko, Bipasso, or Side!
Side is one of a number of 4box products that are unique in their field.
Three times one
equals one!
The module includes one Schuko socket or two bipasso
sockets. It’s a new and innovative multi-socket concept
that eliminates the need for adaptors.
1. NO MORE ADAPTORS
With Side you can connect devices fitted with Schuko plugs without the need for adaptors.
2. SAVES SPACE
With Side you can use two 10 A or 16 A plugs at the same time in a single module.
3. VERSATILE
With Side you can use Italian Standard (2P 10 A, 2P+E 10 A, 2P+E 16 A) and German Standard (2P+E) plugs.
4. EASY TO INSTALL
Side is fitted with a single terminal block, which makes installation quicker and easier.
