Technical information
INFORMATION
Design realizzato da 4box, prodotto fabbricato su licenza AVE S.p.A.
Presa elettrica P503 + 2 Alimentatori USB 3.0 2 moduli – P503 1 schuko e 2 bipasso o 3 bipasso; 2P+T 16 A 250 V AC; 2P+T 10/16 A 250 V – Alimentatore USB 3.0 A 250 V AC 50/60 Hz – 2 uscite tipo C 5 V DC 3.0 A
Weight: 0.0751 kg
Dimensions: 4.48 x 4.85 x 5.28 cm
Power supply: 10/16 A 250 V AC 50-60 Hz
Colour: Metal
Pcs per box: 5
Pcs per package: 50
Data Sheet
TECHNICAL FEATURES_USBP503 USBP503_SPECIFICATION-ITEMS_EN
Technical documentation
Istruzioni/Instructions USB-P503
Declarations and certifications
Esperto Elettrotecnico Direttiva RAEE/WEEE User information dichiarazione_ce_USBP503
DESIGNS

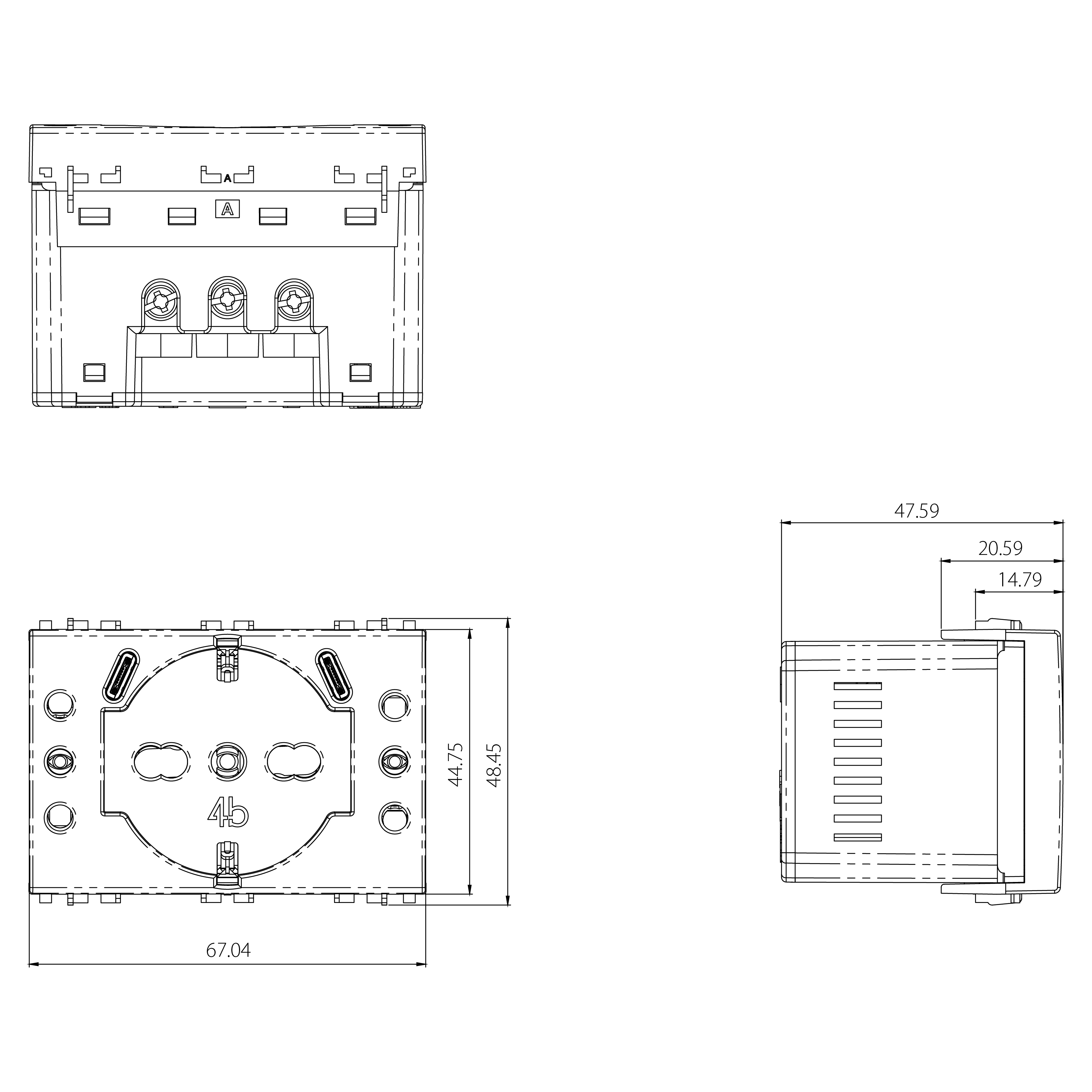

4BOX-USBP503-ARKE.STEP 4BOX-USBP503-ARKE.png
Technical features
Five different sockets to meet every need, finally eliminating the necessity for adapters and external power supplies.
Up to 5 sockets simultaneously, in just 3 modules

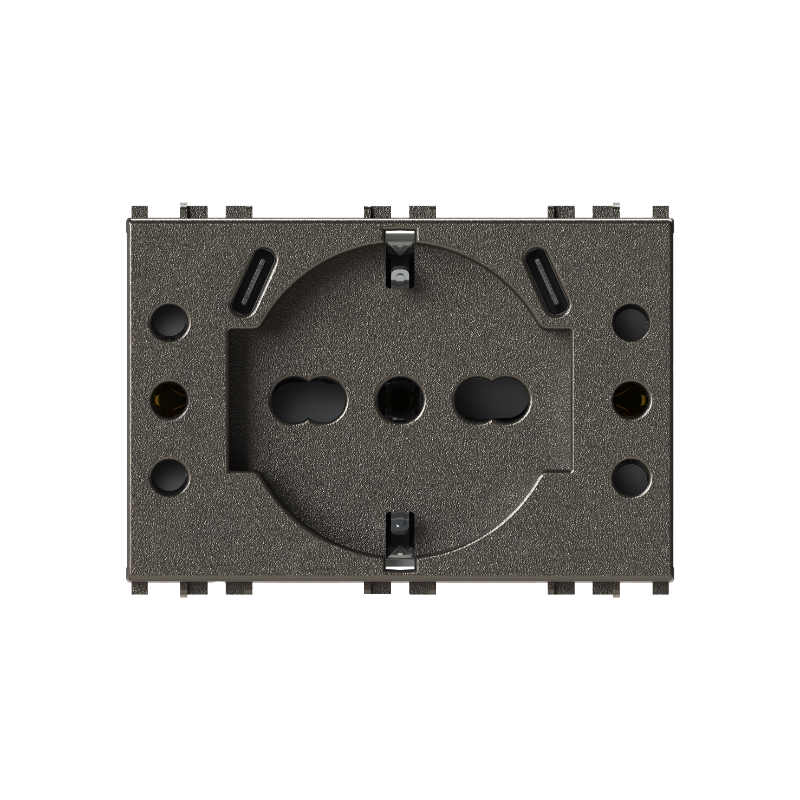

USB P503 is a compact, flush-mounted power strip designed to optimize space. 5 different electrical sockets and 2 USB Type-C outputs in a single product, installable in a traditional 3-module 503 box.
